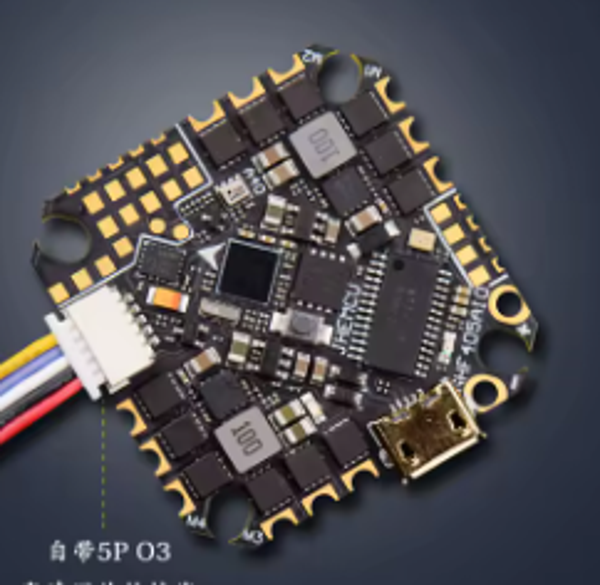

JHEMCU GHF405 AIO HD 40A

Brand Name: JHEMCU

Model: GHF405AIO-HD 40A

MCU: STM32F405/168MHZ

IMU: ICM-42688-P

OSD: AT7456E

Baro: YES

Blackbox: 8MB

Input Voltage: 2S-6S(7.4V-26V)

5V-BEC: 5V/2.5A

10V-BEC: 10V/2A

Receiver: ELRS(CRSF),TBS(CRSF),SBUS,IBUS,DSM2,DSMX

HD Interface: YES

IIC: YES

USART: UARTI, UART2, UART3, UART4, UART6

Led Strip: YES

Buzzer: Support 5V

ESC Signal: PWM,Oneshot125,Oneshot42,Multishot,Dshot150,Dshot300,Dshot600

Voltage Sensor: YES

DFU Button: YES

USB: Micro USB

Firmware: Betaflight_4.4.2 JHEF405PRO.HEX

Size: 33mmx33mm

Mounting Hole:

25.5mm*25.5mm

26.5mm*26.5mm

Weight: 7.1g

ESC Current: 40A

MCU: EFM8BB21F16G

TYPE: Blheli s

ESC Firmware: Bluejay G_H_30_48_v0.19.2

Current Meter: YES

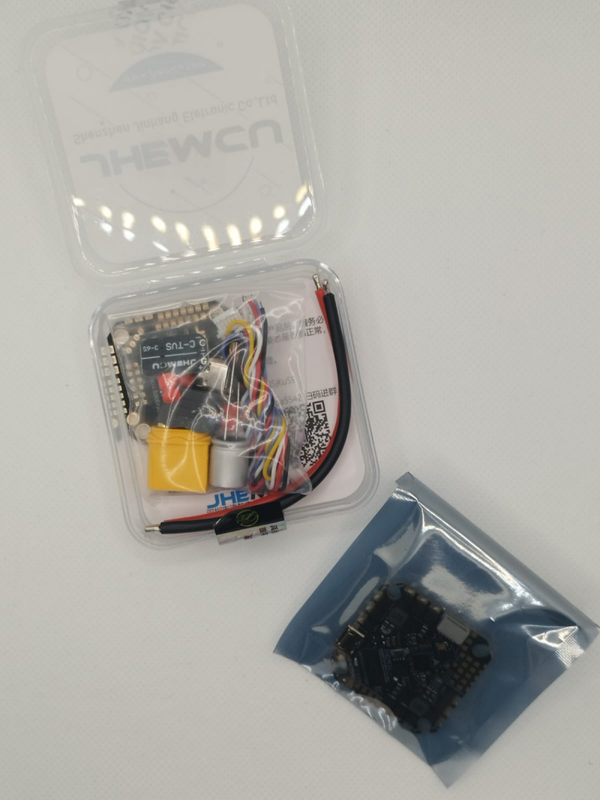

Package Inchluded:

1x GHF405AIO-HD 40A AIO Flight Controller
